Visible double lumen endobronchial tube- A visible and convenient way to perform One LungVentilation

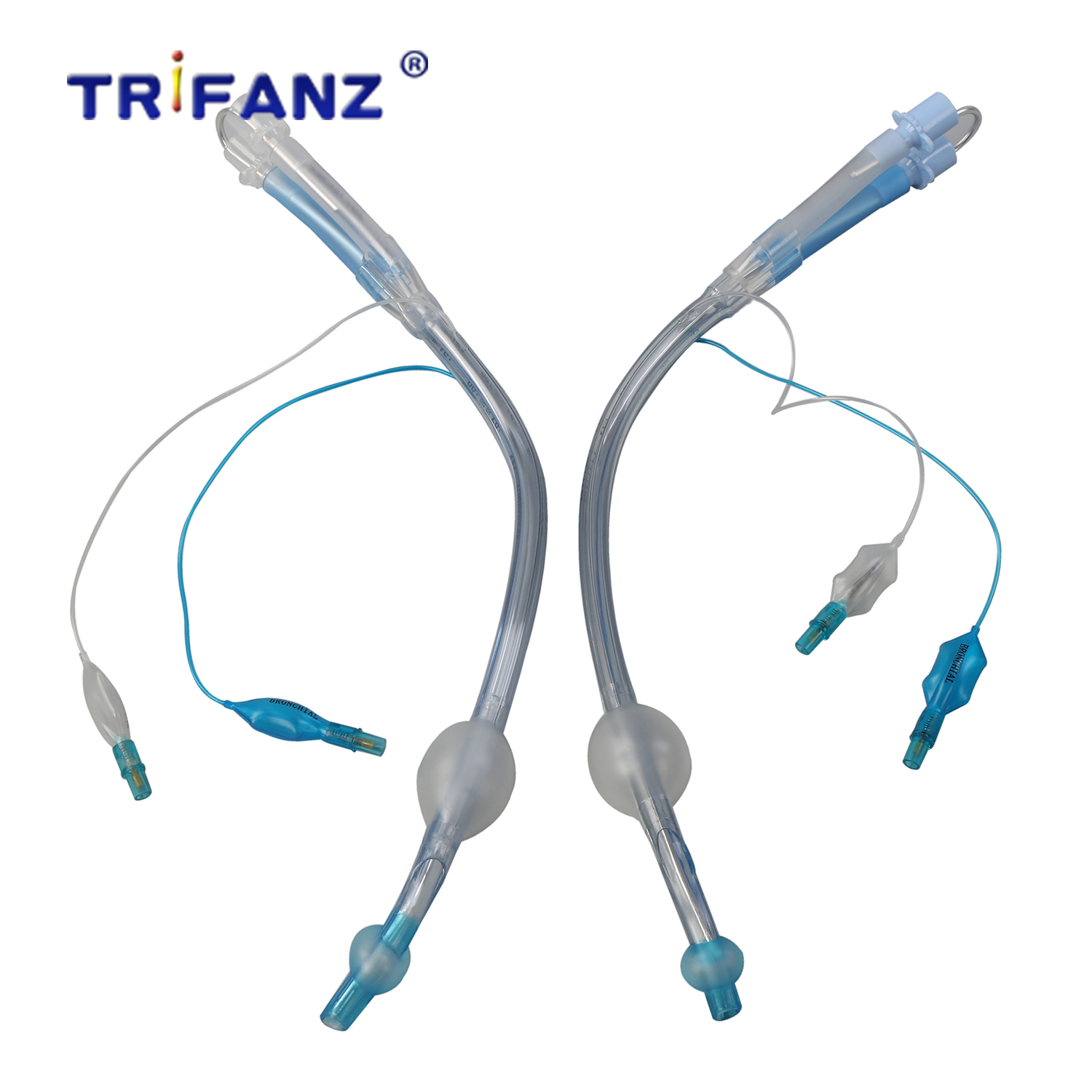

Trifanz’sdouble lumen endobronchial tube (DLT) is a sterile, single-use double lumenendobronchial tube used to isolate the left or right lung of a patient in OneLung Ventilation (OLV) procedures.

Increases patient safety

Trifanz’sDLT is similar in design to conventional double lumen tubes, but it has abuilt-in video camera that connects to the monitor, immediately detect and correct tube malpositioning anddislocation without compromising ventilation of the patient.

​Improves procedure workflow

Continuousvisualization of the tube and patient airway can positively affect patientmanagement and procedure workflow because it:

      Enables faster intubation time than with conventional DLTs

      Facilitates correct tube placement

      Significantly reduces the need to use a bronchoscope

      Facilitates immediate detection and correction of tube dislodgement

Cost-effective

Can lower the cost per procedure

Continuous visualization

Enables real-time monitoring throughout the entire OLVprocedure.

Zero cross-contamination

Single-use and sterile with no risk of patientcross-contamination.

System Integration

Compatible with lots of monitors with USB interface,which streams real-time video simultaneously.​

Perform procedures confidently

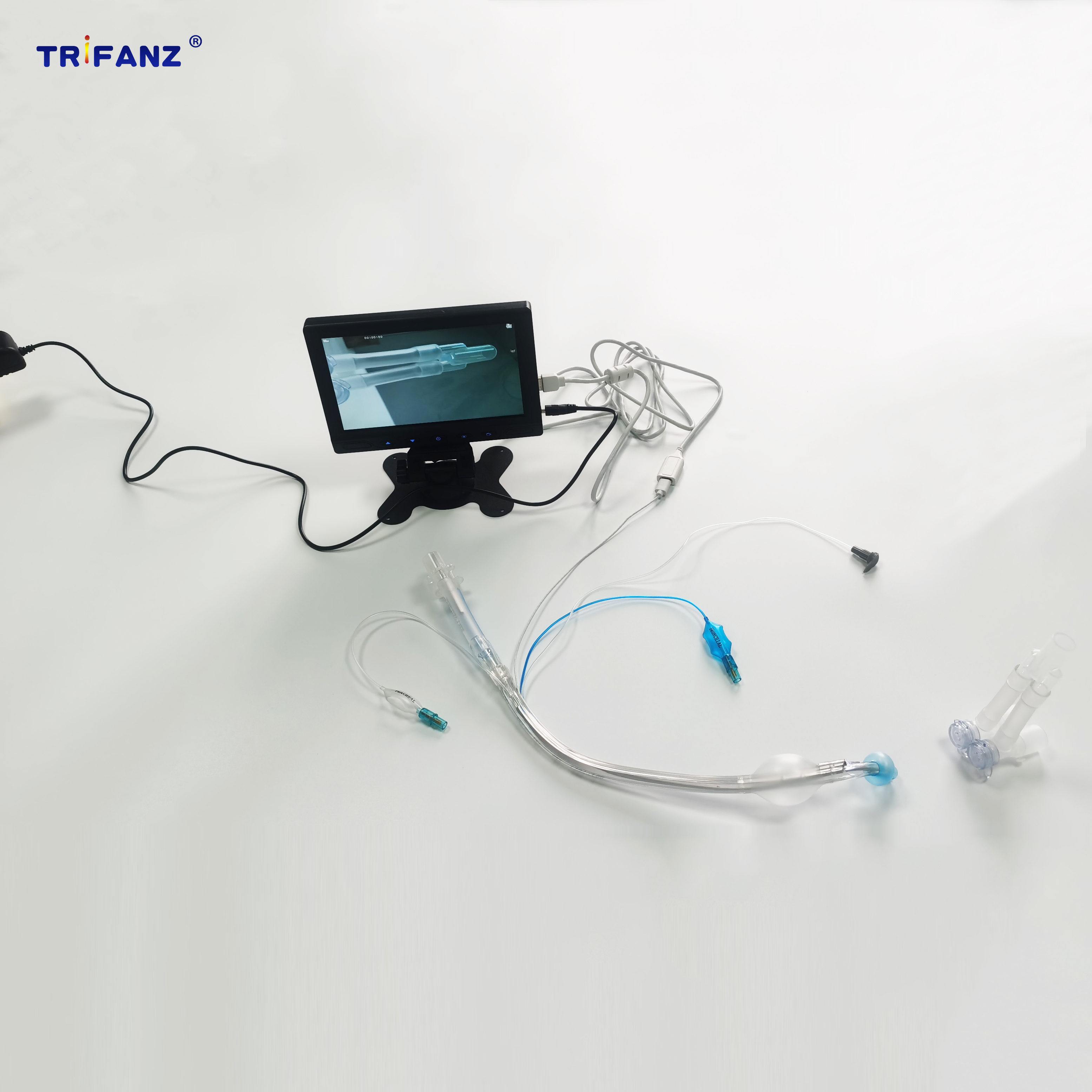

​The combination of the full HD monitor and integratedcamera has a number of features, which can help you keep the focus on yourpatients:

       Integrated View Mode enables you to view real-time video simultaneously

       Full HD resolution and advanced image processing ensure high image quality

       Easy recording and storage of images and videos during procedure fordocumentation and training

​

Technical specifications

Sizes:

Trifanz’s DLT: 37 Fr, 39 Fr

For dimensions, please refer to datasheet

Image sensor:

CMOS

Light sources:

White LED

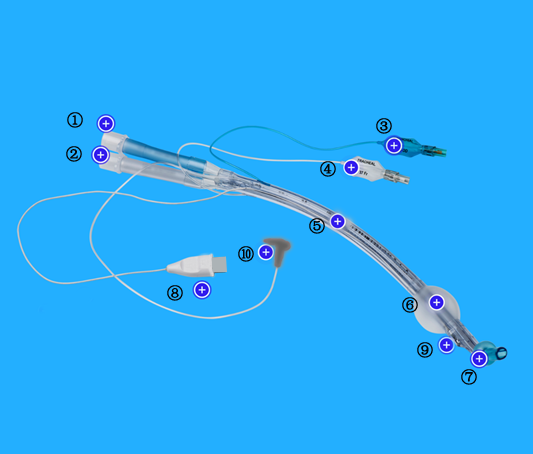

①Bronchial connector 15mm

②Tracheal connector 15mm

③Inflating line of the bronchial cuff, with one-way valve and pilot balloon

④Inflating line of the tracheal cuff, with one-way valve and pilot balloon

⑤Double lumen main tube

⑥Tracheal cuff

⑦Bronchial cuff

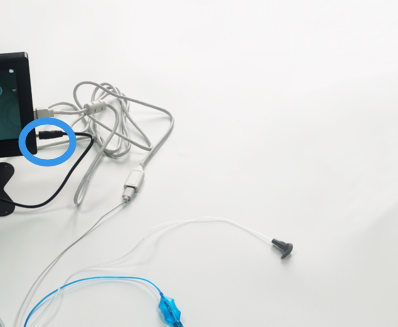

⑧ Video connector: Intuitive and easy connection to the monitor

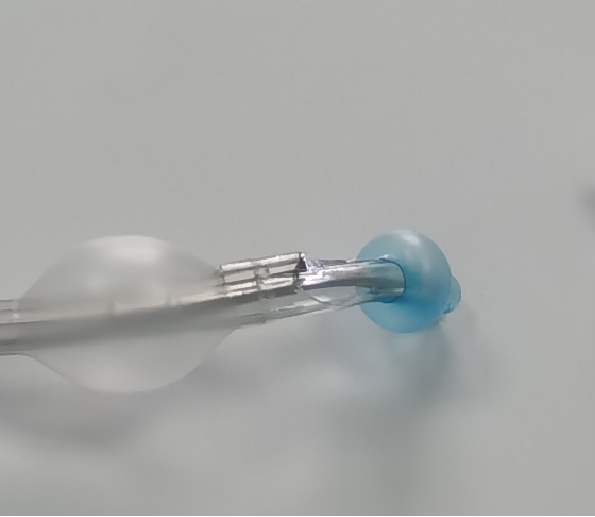

⑨ Embedded camera and LED light enable continuous visualization

Camera lens: coasting that reduces theincidence of obscured vies.

Camera: Image sensor: CMOS

Flush port exits: flush ports used forclearing the lens

⑩ Flush port: To remove secretions on the lens, using air or salineflushes

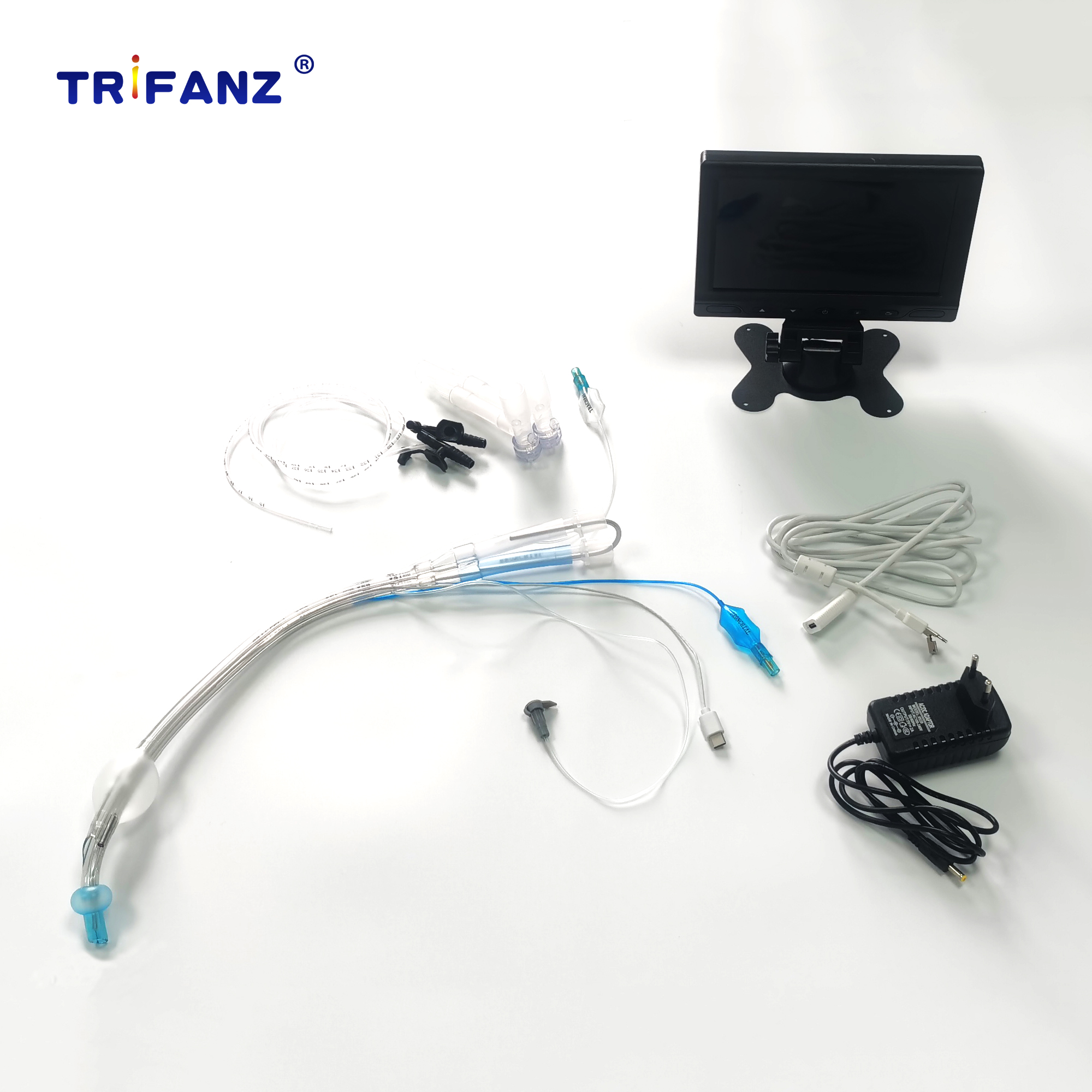

Parts Details：

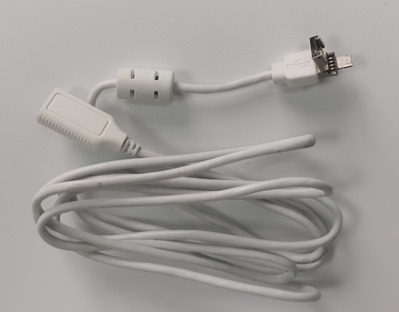

Connecting data line, with 2USB in 1, Micro-USB and USB-A

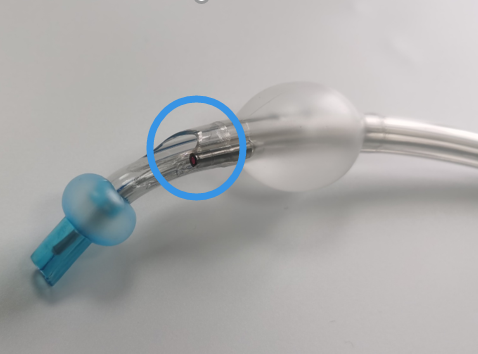

Embedded camera and LED light & Flushport exits

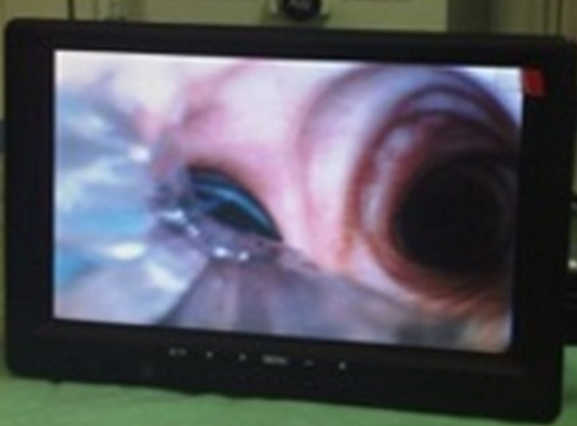

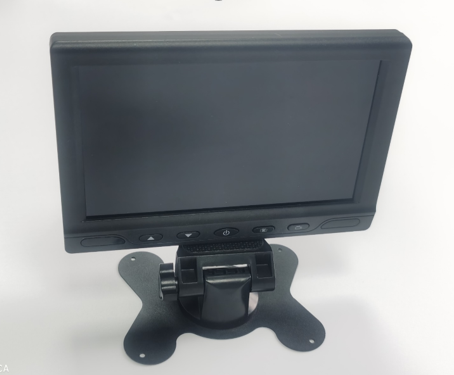

Trifanz video display screen

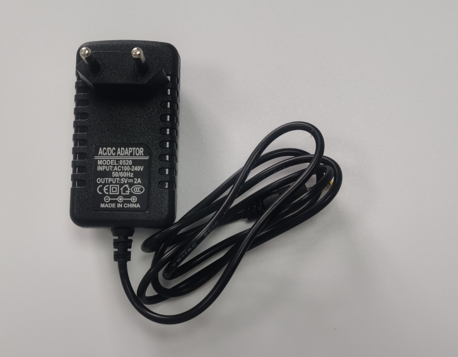

5V2Aoutput power adaptor
